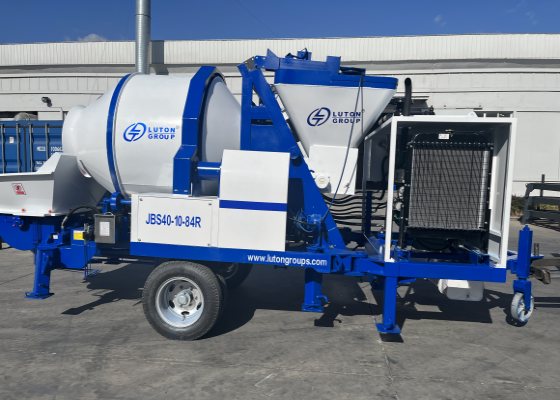

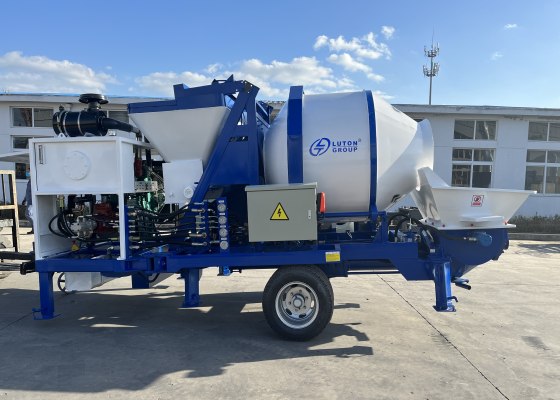

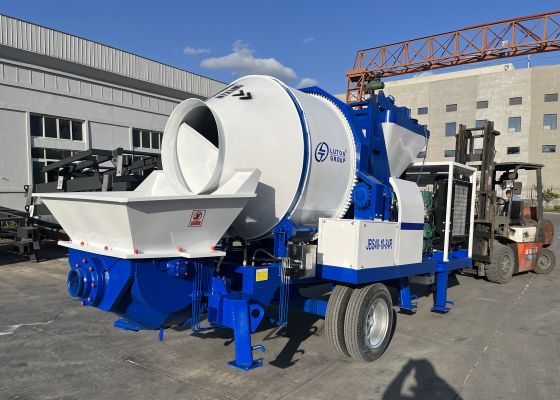

A concrete mixer pump is a kind of concrete conveying pump which adopts the fully automatic construction operation system, integrating feeding, mixing and high pressure pumping. And it’s also the combination of a concrete mixer and a concrete delivery pump.The applications of the concrete mixer pump can be found in terms of road construction, building construction, tunnel construction, bridge construction, slope protection construction and so on.
Model: JBT-40
Capacity: 40m3/h
Power: Electric Engine
Mixer Type: Two Shaft Mixer
Specification of Concrete Mixer Pump
|
Model |
JBS30- 10-37 |
JBS30- 10-66R |
JBS40- 10-45 |
JBS40- 10-82R |
JBS40B-JS500 |
JBS40B-JS500-129R |
|
Main oil Pump |
Jinda |
Jinda |
Kawasaki |
Kawasaki |
Kawasaki |
Kawasaki |
|
Main pump capacity |
71 ml/r |
71 ml/r |
112 ml/r |
112 ml/r |
112 ml/r |
112 ml/r |
|
Theoretical Capacity (m3/h) |
30 |
30 |
40 |
40 |
40 |
40 |
|
Diesel Engine |
37KW |
Yuxing 66KW |
45KW |
Weichai 82KW |
45KW |
45KW |
|
Control System Components |
Schneider |
Schneider |
Schneider |
Schneider |
Schneider |
Schneider |
|
PLC |
Omron |
Omron |
Omron |
Omron |
Omron |
Omron |
|
Pumping Length/height |
400/160m |
400/120m |
500/160m |
500/160m |
500/120m |
500/120m |
|
Price range |
$18,000 ~ $20,000 |
$24,000 ~ $26,000 |
$19,000 ~ $21,000 |
$34,000 ~ $36,000 |
$24,000 ~ $26,000 |
$42,000 ~ $44,000 |
Concrete Mixer Pump Price
The price of a concrete mixer pump is diverse in the market anywhere. There are many different factors determining or influencing the price of a concrete mixer and pump such as pumping capacity, pumping pressure and drive type and so on.
The concrete mixer with pump can be divided into diesel-driven mixer pump and electric-driven mixer pump on the basis of the difference of power sources.
Prices for different model parameters of the same diesel concrete mixer pump vary. For instance, JBT30-08R and JBT40-11-82R belong to diesel-driven mixer pump, but their prices vary due to the differences of the parameter.
The price of a diesel engine mixer pump that power is 30kw is around 20,000$, while the price of a 40kw same type mixer pump ranges from 23,000$ to 31,250$.
JBT30-08R refers to the concrete mixer pump that the power of working is 30kw and JBT40-11-82R refers to the concrete mixer with pump of which power is 40kw.
Prices for the same model parameters of the concrete pump driven by different power sources vary as well. For example, the price of JBT30-08R is different from that of JBT30-08.
The price of a electric-driven concrete pump that the power is 30kw is around $17,120 while the price of the same engine concrete mixer pump that the power is 40kw is $195,300.
Related: Diesel Concrete Pump
The Types of the Concrete Mixer Pump
Concrete Mixer Hydraulic Pump
A concrete mixer hydraulic pump refers to the combination of a concrete mixer and a concrete pump that the concrete is pumped under the hydraulic pressure. And the hydraulic concrete pump is part of the piston concrete pump. It is also called concrete pressure pump.
Diesel Concrete Mixer Pump
A diesel concrete mixer pump is the mixture of a concrete mixer and a diesel concrete pump. A diesel concrete pump is a type of concrete conveying pump and its power is driven by diesel engine.
Diesel concrete mixer pump can be found in terms of construction of high building, bridges, highway, tunnels and water conservancy projects, etc.
What’s more, a diesel concrete mixer pumps is more often used in some mountainous areas and remote villages due to the shortage of electricity.
Small Concrete Mixer with Pump
Generally a small concrete mixer with pump is composed of a concrete mixer and a concrete pump that the theoretical delivery capacity is 30m3 to 40m3 per hour.
And it’s featured by the small size and light weight. The applications of a small concrete mixer with pump can be found in these fields such as tunnels, grouting piles, water conservancy project and mine cave.
Mini Concrete Mixer with Pump
The mini concrete mixer with pump consists of a concrete mixer and a concrete pump that the theoretical delivery capacity is 10m3 to 20m3 per hour.
Mobile Concrete Mixer with Pump
The mobile concrete mixer pump consists of both a trailer concrete pump and a concrete mixer which has the advantages of small power, small size and high mobility and convenient operation as well as low cost.
And the mobile concrete mixer pump can be used in floor heating, shotcrete engineering and the spraying of refractory materials.
The mobile concrete mixer pump has a very small delivery capacity, and which is more convenient than large and medium-sized concrete pump, pump truck and truck mounted pump to use.
The mobile concrte mixer with pump is especially suitable for the construction of 5-10 floor buildings in urban and rural areas. The actual vertical height of pumped concrete can reach 80-100m and the horizontal distance is 150-300m.
Related: Cheap Concrete Pumps
Self Loading Concrete Mixer with Pump
A self loading concrete mixer with pump is an innovative combination of a self loading mixer and a concrete pump, which is a machine that can load automatically aggregates, mix concrete and pump concrete.
What’s more, it can be transported and placed wherever required. Only one single person is enough to operate the machine and can complete the process of concrete mixing.
Concrete Mixer Pump Truck
In short, the mixer pump truck is the combination of a mixing truck and a pump truck, which can not only meet the requirements of small volume pumping operation, but supplement the drawback of lack of materials in the process of mixer truck transportation, realizing continuous pumping.
Using a truck-mixer concrete pump is the optimum choice for conveying and placing small and medium-sized aggregates. The concrete mixer pump truck consists of pumping system and mixing system.
The pumping system adopts chassis engine, and the mixing system is driven by motor or hydraulic engine. It is a kind of machinery that can feed and pump concrete independently.
FAQ
How Does a Self Loading Concrete Mixer Work
The drum rotates at a high speed, and its rotation direction is fixed during the mixing process. The spiral blade pushes the concrete materials into the depth of the drum in the process of mixing. This high-speed rotation ensures the uniform mixing of materials in concrete.
How Far Can a Concrete Mixer Pump Concrete Reach
A concrete mixer and pump can reach around 300-meter horizontally while it can reach approximately 60-meter height vertically.
Related: Small Concrete Pump
What are the Advantages of Purchase of a Concrete Mixer Pump
Most manufacturers are considering the purchase or hire of a concrete mixer pump. Before making this decision, some factors should be considered such as sites location, work scope, available employees and time to complete the project.
Generally a concrete mixer pump make individuals get the upper hand in any projects. They’d better invest in one instead of renting a mixer pump.
High efficiency
With on-site mixing and continuous pumping, service efficiency of a concrete mixer with pump can reach 4-6 times that of traditional fixed mixer and concrete delivery pump, which greatly improves the construction efficiency and shortens the construction process.
Low labor cost
In the process of mixing and pumping, only one operator is required to complete the two procedures, which is highly mechanized and simple to operate. So the using of a concrete mixer pump can greatly save labor cost.
Long-Term Savings
At the beginning of buying a concrete mixer pump, the investment or cost is probably a little high, however the machine enterprises or individuals bought can avoid spending on hiring the labors in the future.
The amount of saving will be more and more tremendous over time, and the money can be used elsewhere.
Enough flexibility
The concrete mixer pump has the advantages of convenient and flexible movement and strong mobility, which is very suitable for transfer and alternating operation on different sites.
What is the Price of Concrete Mixer Pump Truck
There are many factors that affect the prices of the concrete mixer pump truck such as the pumping height, outlet pressure, delivery capacity, the power source of pumping system(diesel engine or electric engine) and wheel base and so on. Generally the price of the concrete mixer pump truck available in Luton Group is on 45,000$ to 95,000$.
