Morcco is building faster than ever. Highways, ports, housing projects, and industrial zones are rising across Casablanca, Tangier, Rabat, and beyond – and behind nearly every structure is a steady, reliable supply of concrete.
For contractor and ready-mix producers, the HZS90 fixed concrete batching plant delivers exactly what these projects demand: 80m³/h of stable, high-quality concrete production without the downtime and inconsistency that slow construction down.
Designed for long-term installation, the HZS90 stationary plant is ideal for medium-to-large projects and commercial batching operations. It works continuously, doses materials accurately, and performs reliably even in Morocco’s hot and dusty conditions. If you need a concrete supply solution that keeps your project moving, this is the plant to consider.
| Background | Morocco |
| Equipment | HZS90 Fixed Concrete Batching Plant |
| Production Capacity | 90 m³/h |
| Power Supply | 380V/50Hz, 3 Phase |
| Cement Silo Number | Cement Silo Number |
| Dispatching Time | within 20 working days after receiving advanced payment |
What is HZS90 Fixed Concrete Batching Plant
The HZS90 fixed concrete batching plant is a stationary concrete mixing facility with a theoretical production capacity of 90 cubic meters per hour. It is designed for projects and business that require continuous, high-volume concrete output from a single location.
The name HZS90 follows a standard industry format:
HZ stands for concrete mixing station
S indicates a twin-shaft compulsory mixer
90 refers to the theoretical output of 90m³/h
At the heart of the HZS90 plant is the JS1500 twin-shaft concrete mixer. This type of mixer forces materials together with double horizontal shafts, producing a fast and uniform mix. Compared with drum mixers, twin-shaft mixers deliver better concrete quality, shorter mixing cycles, and higher productivity – making them the preferred choice for commercial ready-mix plants.
Unlike mobile concrete plants, a fixed HZS90 batching plant is installed on a concrete foundation. Once set up, it is not intended to be moved frequenctly.
This design provides several advantages:
- Stronger structural stability
- Higher daily output
- More accurate weighing and dosing
- Larger raw material storage capacity
- Easier integration with cement silos, water supply, and admixture systems
A typical HZS90 stationary concrete plant consists of the following main components:
JS1500 Twin-shaft Mixer
Aggregate Batching Machine
Cement Silos
Cement Screw Conveyors
Weighing System
Control System
Dust Collection System
Control Room
Belt Machine
The modular design of the HZS90 plant allows it to be transported in containers or on flat racks and assembled quickly on site. This is especially important for international projects, including those in Morocco, where fast installation and reliable after-sales support are key considerations.
In short, the HZS90 fixed concrete batching plant is a practical, high-performance solution for companies that need consistent, large-volume concrete production without frequent relocation. The next section explains why this plant is particularly well suited to the Moroccan construction market.
Why HZS90 is Suitable for Morocco
Morocco’s construction market is growing quickly, but it is also demanding. Project owners, contractors, and ready-mix suppliers need equipment that can deliver consistent results under real site conditions. The HZS90 fixed concrete batching plant meets these requirements in several important ways.
The Right Capacity for Medium and Large Projects
Not all projects need larege 120m³/h or 180m³/h concrete batching plants. Many medium-to-large road, bridge, residential and commercial projects in Morocco work well with the 90m³/h HZS90 stationary plant. It delivers adequate concrete for continuous pouring at lower investment, site and operating costs than larger models.
For ready-mix operators, this capacity supports daily output of hundreds of cubic meters, perfectly suited to serve local construction sites in Casablanca, Rabat, Tangier and Marrakech.
Stable Performance for Continuous Production
Morocco’s major infrasturcture projects often require long working hours and tight schedules. The HZS90 fixed batching plant is designed for continuous operation. Its twin-shaft mixer and robust steel structure reduce the risk of unexpected breakdowns, helping contractors maintain a steady supply of concrete.
Stationary plants are also less affected by ground movement or frequent reassembly, which means fewers alignment problems and more consistent mixing quality over time.
Automatic Control Reducers Labor Dependence
Skilled labor availability and cost are important considerations in Morocco. The HZS90 plant can be equipped with a full automatic control system that manages batching, weighing, mixing, and discharge with minimal manual intervention. This not only improves accuracy but also reduces the number of workers needed on site.
Operators can monitor production from a control room, and the system can store mix recipes for different concrete grades. This is especially useful for ready-mix suppliers serving multiple clients with different specifications.
Built for Hot and Dusty Environments
Many parts of Morocco experience high temperatures, strong sunlight, and dry, dusty conditions, particularly during summer. The HZ90 fixed concrete batching plant can be configured with:
- Dust collection systems for cement silos and mixer
- Weather-resistant electrical components
- Proper ventilation in the control room
- Corrosion-resistant coatings on steel structures
These features help maintain reliable performance and extend the service life of the equipment, even in tough climates.
Lower Maintenance Costs and Easy Parts Supply
Because the HZS90 is one of the most widely used concrete plant models worldwide, spare parts are readily available. For Moroccan users, this means less waiting time and lower maintenance costs. Common wear parts such as mixing blades, liners, conveyor belts, and filters can be sourced quickly, minimizing downtime.
In addition, the modular design of the plant makes inspection and maintenance easier, as key components are accessible and clearly separated. Overall, the HZS90 stationary concrete batching plant offers a practical balance of productivity, reliability, and cost-effectiveness that matchines the needs of Morocco’s fast-developing construction sector.
HZS90 Plant Applications in Morocco
The HZS90 fixed concrete batching plant is not limited to one type of project. Its 90m³/h output, stable mixing performance, and flexible configuration make it suitable for a wide range of construction activities across Morocco. Below are the most common applications where this stationary concrete plant delivers strong results.
Residential and Commercial Building Projects
Morocco’s urban population continuous to grow, and with it, the demand for housing, offices, shopping centers, and hotels. In cities like Casablanca, Rabat, Marrakech, and Tangier, developers need a steady supply of ready-mix concrete for foundations, columns, slabs, and floor structures.
The HZS90 concrete batching plant provides the continuous output needed for mid-rise and high-rise construction. Its automatic control system ensures that every batch meets the required strength and consistency, which is essential for structural concrete.
Road and Highway Construction
Morocco has invested heavily in its highway network, connecting major economic centers and ports. Road projects require large volumes of concrete for pavement, barriers, culvers, bridge decks, and drainage structures.
Because the HZS90 is a stationary plant, it can be installed near a highway project and operate for the entire construction period. Its reliable output reduces the risk of supply interruptions, helping road constractors maintain their paving and pouring schedules.
Bridge and Tunnel Projects
Bridges and tunnels demand high-quality concrete with precise mix proportions. The HZS90 fixed batching plant, equipped with accurate weighing systems and a twin-shaft mixer, produces uniform concrete that meets strict engineering specifications.
For tunnel projects, the plant can be configured with additional admixture systems and dust collection equipment, which is often required in enclosed or environmentally sensitive areas.
Port and Airport Infrastructure
Morocco’s strategic location has led to major investments in ports such as Tanger Med and Casablanca Port, as well as airport expansions. These projects consume large quantities of high-strength concrete for runways, aprons, quay walls, and heavy-duty pavements.
The HZS90 stationary concrete plant can support these large-scale works by delivering continuous, high-volume production with minimal downtime. Its robust structure and industrial-grad components are designed for demanding conditions.
Precast Concrete Yards
In addition to ready-mix supply, many Moroccan manufacturers use concrete batching plants to feed precast production lines. Products such as as concrete blocks, pipes, beams, manholes, and wall panels require consistent concrete quality and efficient batching.
The HZS90 plant is a popular choice for precast yards because it can be configured with multiple aggregate bins, cement silos, and admixture dosing systems, allowing producers to switch between different concrete mixes quickly.
Municipal and Utility Works
Municipal projects – including water treatment plants, drainage systems, sidewalks, and public buildings – also benefit from a reliable local concrete supply. The HZS90 fixed concrete batching plant can be installed on the outskirts of a city or near a municipal works depot, serving multiple smaller projects at once.
Its moderate footprint and flexible layout make it suitable for sites where space is limited but concrete demand remains steady.
In summary, the HZS90 fixed concrete batching plant supports the full spectrum of Morocco’s construction needs – from high-rise buildings and highways to ports, precast production, and public infrastructure. Its combination of capacity, accuracy, and durability makes it a practical long-term investment for contractors and concrete suppliers operating in this growing market.
Key Features & Advantages of HZS90 Plant
The HZS90 fixed concrete batching plant is popular in Morocco not only because of its 90m³/h output, but also because of its practical design and reliable components. Below are the main features that make this stationary concrete plant a strong choice for Moroccan contractors and ready-mix suppliers.
JS1500 Twin-shaft Mixer for Superior Concrete Quality
At the core of the HZS90 plant is the JS1500 twin-shaft compulsory mixer. Unlike drum mixers, twin-shaft mixers force materials in a circular motion with two horizontal shafts, producing a fast and homogeneous mix. This results in:
- Consistent concrete strength and workability
- Shorter mixing cycles
- Higher productivity per batch
- Better performance for high-grade concrete
For projects that require strict quality control – such as bridges, high-rise buildings, and precast elements – this mixer is a major advantge.
Modular Design for Fast Installation
The HZS90 fixed concrete batching plant is built with a modular structure. Key components such as the mixer unit, batching machine, cement silos, and control room are manufactured as separate modules. This design offers two important benefits:
1. Easy transport – The plant can be shipped in standard containers or on flat racks, which reduces freight costs to Moroccan ports like Casablanca, Tangier, and Agadir.
2. Quick assembly – On-site installation is faster and simpler, helping you start production sooner.
Accurate Weighing and Dosing System
Concrete quality depends heavily on accurate material proportions. The HZS90 plant uses independent weighing systems for aggregates, cement, water, and additives. Each system is controlled by hig-precision sensors and reliable control system.
This ensures:
- Consistent mix design for every batch
- Reduced material waste
- Compliance with project specifications
- Better cost contorl for ready-mix producres
Automatic Control System with Recipe Storage
The HZS90 can be equipped with a full automatic contorl system. Operators can select pre-mix recipes, monitor production in real time, and adjust parameters easily. The sytem can store multiple recipes for different concrete grades, which is especially useful for suppliers serving several construction sites.
For Moroccan users, the control system can be supplied with English or Frenchh interface options, making operation and training more convenient.
Reliable Performance in Hot and Dusty Conditions
Morocco’s climate can be challenging, especially in inland areas where summer temperatures are high and dust is common. The HZS90 fixed concrete batching plant can be configured with:
- Dust collection systems for cement silos and mixer
- Heat-resistant electrical components
- Proper ventilation for the control room
- Corrosion-resistant paint and protective coatings
These features help the plant maintain stable performance and a longer service life in local conditions.
Low Energy Consumption and Operating Cost
The HZS90 is designed to balance production capacity with energy efficiency. Its optimized power system and efficient mixer reduce electricity consumption per cubic meter of concrete. Combined with low maintenance requirements and easily available spare parts, this makes the plant cost-effective over its entire service life.
Customizable Configuration
No two projects are exactly the same. The HZS90 fixed concrete batching plant can be customized with:
- 3 or 4 aggregate bins
- 50t, 100t, or 150t cement silos
- Screw conveyor length options
- Admixture dosing systems
- Belt conveyor or skip hoist feeding
- Full automatic or semi-automatic control
- Optional dust collection and heating systems
This flexbility allows Moroccan buyers to configure the plant according to their specific project requirements and budget.
Compliance with International Standards

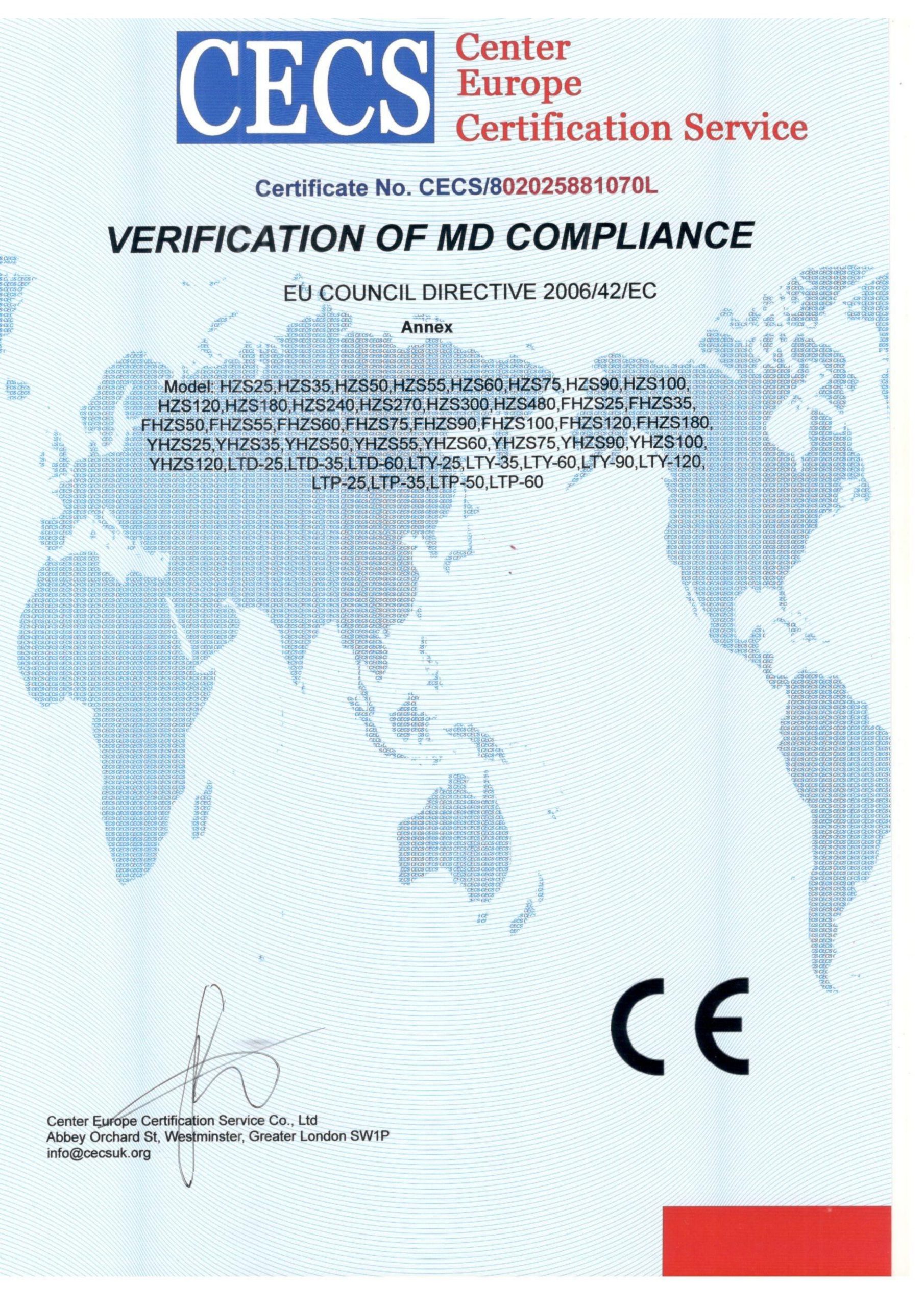

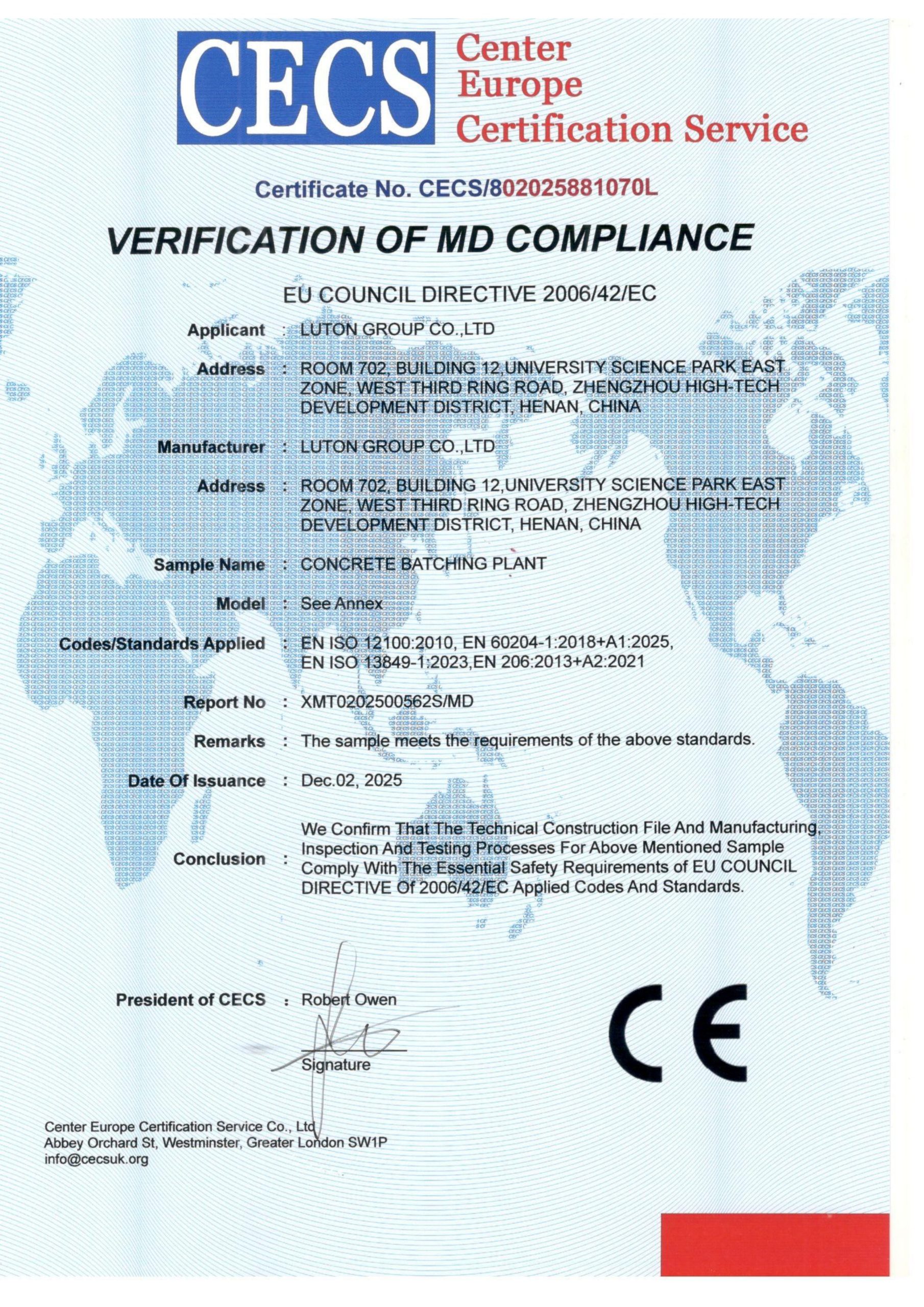

The HZS90 plant can be manufactured to meet CE and ISO standards. This is important for projects that require international quality certification or for companies that plan to serve clients with strict technical specifications. Reliable welding, high-quality steel, and tested electrical components ensure the plant meets demanding industry requirements.
In short, the HZS90 fixed concrete batching plat combines proven mixing technology, accurate dosing, flexible configuration, and durable construction. These features make it a dependable solution for Morocco’s growing construction market – whether you are supplying ready-mix concrete, supporting a large infrastructure project, or running a precast production yard.
Technical Specifications of HZS90 Concrete Batching Plant
The HZS90 fixed concrete batching plant is a standarded model, but its final configuration can be adjusted according to project requirements, local conditions, and budget. The table below lists the typical technical parameters for a standard HZS90 stationary concrete batching plant. Actual specifications may vary depending on the selected options and manufacturer.
| Item | Specification |
| Model | HZS90 |
| Type | Fixed/Stationary concrete batching plant |
| Theoretical Production Capacity | 90m³/h |
| Mixer Model | JS1500 twin-shaft compulsory mixer |
| Mixing Cycle | 60s |
| Discharge Volume | 1.5m³ per batch |
| Aggregate Batching Machine | PLD2400 (3 or 4 bins) |
| Aggregate Bin Capacity | 3×8 m³ or 4×8m³ (customizable) |
| Cement Silo Capacity | 50t/100t/150t (optional) |
| Screw Conveyor | Ø219 mm or Ø273 mm (optional) |
| Weighing System | Independent weighing for aggregate, cement, water, and admixture |
| Weighing Accuracy | Aggregate ±2%, Cement ±1%, Water ±1%, Admixture ±1% |
| Control System | Full automatic / Semi-automatic |
| Discharge Height | 3.8m – 4.2m (customizable) |
| Total Power | Approx. 120-150 kW (depending on configuration) |
| Feeding Mode | Belt conveyor or skip hoist |
| Dust Collection | Optional, with 1-2 dosing pumps |
| Operating Temperature | Suitable for hot and dusty environments |
| Transport | Standard containers or flat racks |
| Certification | CE/ISO (optional) |
Key Notes on Configuration
Production capacity: The theoretical capacity of 90m³/h is based on ideal working conditions. Actual output may vary depending on mix design, operator efficiency, and raw material supply.
Aggregate bins: Moroccan projects often choose 4-bin batching machines for greater flexiblity when producing different concrete grades.
Cement silos: 100t silos are the most common choice for ready-mix plants, while 50t silos are suitable for smaller sites or precast yards.
Control system: A full automatic system is recommended for commercial ready-mix production, while a semi-automatic system may be sufficient for smaller or budget-focused projects.
Climate adaptation: For inland areas with high temperatures and dust, additional dust collection and ventilation features are strongly recommended.
Because every project has different requirements, the HZS90 fixed concrete batching plant can be customized in terms of silo capacity, batching machine size, control system, and auxiliary equipment. For a precise quotation and layout drawing, please contact our technical team with your project details.
Why Choose Us as Your HZS90 Plant Supplier in Morocco
Choosing the right supplier for your HZS90 fixed concrete batching plant is just as important as choosing the right model. A reliable supplier ensures that your plant arrives on time, is installed correctly, and continues to perform efficiently for years. Here is why we are a trusted partner for Moroccan contactors, ready-mix producers, and precast manufacturers.
Factory-Direct Supply with Competitive Pricing
Experience in North African and Moroccan Markets
Installation, Commissioning, and Training
Fast Spare Parts Supply
Customized Configuration for Your Project
After-Sales Service You Can Rely On
Proven Quality and Certification
Delivery, Installation & After-Sales Service
FAQ of HZS90 Concrete Plant
Q1: What is the actual output of the HZS90 fixed concrete batching plant?
The theorectical capacity is 90m³/h. Actual output depends on mix design, cycle time, raw material supply, and operator efficiency. Under normal working conditions, it is well suited for medium-to-large projects and commercial ready-mix production.
Q2: Is the HZS90 suitable for Morocco’s hot and dusty climate?
Yes. The plant can be configured with dust collection systems, heat-resistant electrical components, control room ventilation, and corrosion-resistant coatings to handle Morocco’s summer conditions.
Q3: How long does installation take in Morocco?
Usually 15-25 days after the foundation is ready. We provide foundation drawings, remote installation support, or on-site engineer guidance if required.
Q4: Do you provide French manuals and technical support?
Yes. English and French documentation and technical support are available for Moroccan customers.
Q5: What does the price include?
Price depends on configuration – aggregate bins, cement silo capacity, control system, dust collection, and shipping. Send us your project details for an exact quotation.
Q6: Can the HZS90 plant be customized?
Yes. Common options include 3 or 4 aggregate bins, 50t/100t/150t cement silos, belt or skip feeding, automatic or semi-automatic control, admixture systems, and special voltage requirements.
Q7: How long is delivery to Morocco?
Typically 20-35 days after order confirmation, depending on configuration and shipping schedule. Main ports include Casablanca, Tanger Med, and Agadir.
Q8: What about warranty and spare parts?
We offer a 12-month warranty for main components. Common wear parts and spare parts can be shipped quickly to Morocco to minimize downtime.
Q9: Can the HZS90 be used for both ready-mix and precast production?
Yes. It is suitable for ready-mix concrete supply, precase yards, road and bridge projects, building construction, and municipal infrastructure.
Q10: How can I get a quote?
Send us your project location, required capacity, voltage, cement silo requirements, and control preference. We will provide a suitable configuration, layout drawing, and price.
