A quarry stone crusher is a crushing machine or crushing plant used to reduce large stones from a quarry into smaller aggregates with controlled sizes. Designed for continuous and heavy-duty operation, it is a core investment for quarry owners seeding long-term production stability. These aggregates are essential materials for concrete production, ashpalt mixing, road construction, and other infrastructure projects.
In quarry and aggregate production, quarry stone crushers serve as the core equipment that ensures stable output, consistent particle size, and efficient material processing throughout the entire crushing line.
Common Materials Processed by Quarry Stone Crushers
Quarry stone crushers are designed to handle various types of natural stone, including limestone, granite, and basalt.
- Limestone, commonly used in cement and concrete applications.
- Granite, valued for its strength and durability.
- Basalt, widely used in road and asaphalt projects
With proper configuration, a quarry stone crusher plant can efficiently process different materials while maintaining reliable performance.
Main Types of Quarry Stone Crushers
Quarry stone crushers are classified based on their crushing stage and working principle. A complete quarry crushing plant usually combines several types of crushers to achieve efficient and stable aggregate production.
The table below summarizes their main functions and applicatons in a quarry stone crusher plant. This overview allows project planners to quickly shortlist the most suitable crusher type based on stone characteristics and production goals.
| Crusher Type | Crushing Stage | Suitable Stone Type | Typical Applications |
| Jaw Crusher | Primary crushing | Hard and abrasive stone (granite, basalt) | First-stage crushing in quarry plants |
| Cone Crusher | Secondary/Tertiary crushing | Hard and medium-hard stone | Secondary and fine crushing for high-hardness stone |
| Impact Crusher | Secondary crushing | Medium and soft stone (limestone, dolomite) | Aggregate production for concrete and asphalt |
| VSI Crusher | Tertiary crushing/shaping | Variou stone types | Final shaping and manufactured sand production |
Jaw Crusher for Quarry Primary Crushing
The jaw crusher is the most commonly used equipment for primary crushing in a quarry stone crusher plant. It uses compressive force to break large stones into manageable sized, suitable for hard and abrasive materials.
With a simple structure and strong crushing force, they are ideal for handling large sizes and heavy-duty quarry operations.
| Model | Size of Feed Opening (mm) | Max. Feeding Size (mm) | Adjustable Size of Discharge Opening (mm) | Capacity (t/h) | Power (kW) |
| PE 150×250 | 150×250 | 125 | 10-40 | 1-3 | 5.5 |
| PE 250×400 | 250×400 | 210 | 20-60 | 5-20 | 15 |
| PE 400×600 | 400×600 | 350 | 40-100 | 16-65 | 30 |
| PE 750×1060 | 750×1060 | 630 | 80-160 | 90-320 | 110 |
| PE 900×1200 | 900×1200 | 750 | 95-210 | 140-450 | 130 |
Cone Crusher for Secondary and Tertiary Crushing
A cone crusher is widely applied in secondary and tertiary crushing stages, especially for hard and medium-hard stones. It crushers materials through continuous compression, producing uniform particles sizes and stable output.
Compare with impact crushers, cone crushers offer better wear resistance and lower operating costs when processing high-hardness quarry stone, making them a preferred choice for long-term aggregate production.
| Model | Cavity mould | Mini Output Size (mm) | Feed Opening (mm) | Capacity (t/h) | Power (kW) |
| HPC200 | M | 16 | 120 | 140-220 | 160 |
| HPC300 | C | 20 | 210 | 190-380 | 250 |
| HPC400 | C | 25 | 251 | 295-560 | 315 |
| HPC500 | M | 22 | 210 | 345-605 | 400 |

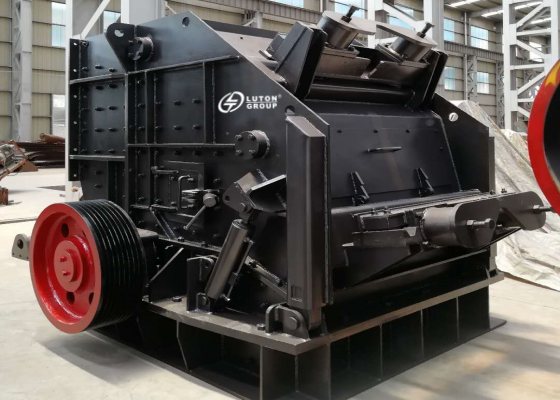

Impact Crusher for Quarry Stone Processing
The impact crusher uses high-speed impact force to break stone into smaller pieces. It is commonly used for medium and soft stone materials, such as limestone and dolomite.
One of the key advantages of impact crushers is their ability to produce well-shaped aggregates with a high proportion of cubic particles, which is beneficial for cocnrete and asphalt applications.
| Model | PF-1007 | PF-1210 | PF-1315 | PF-1320 |
| Specification (mm) | φ1000×700 | φ1250×1050 | φ1300×1500 | φ1300×2000 |
| Feed Opening (mm) | 400×730 | 400×1080 | 565×1600 | 496×2100 |
| Max. Feeding Size (mm) | 300 | 350 | 350 | 350 |
| Capacity (t/h) | 25-45 | 45-100 | 70-180 | 110-300 |
| Power （kW） | 55 | 110 | 200 | 280 |

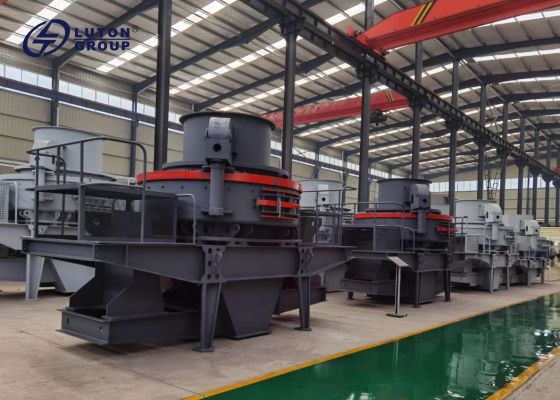

VSI Crusher for Shaping and Sand Making
The VSI (Vertical Shaft Impact) crusher is mainly used for aggregate shaping and manufactured sand production. Instead of heavy compression, it relies on high-speed stone-on-stone ro stone-on-metal impact.
In a quarry stone crusher palnt, VSI crushers are often installed in the final stage to improve particle shape and meet higher-quality requirements.
| Model | Dimension | Capacity (t/h) | Max. Feeding Size (mm) | Power (kW) |
| VSI7611 | 3700×2150×2100 | 120-180/60-90 | ＜35 | 110 |
| VSI8518 | 4140×2280×2425 | 200-260/100-130 | ＜40 | 180 |
| VSI9526 | 4560×2447×2778 | 300-380/150-190 | ＜45 | 264 |
| VSI1140 | 5000×2700×3300 | 450-520/220-260 | ＜50 | 400 |
For more details, please move to Types of Stone Crusher.
Mobile and Fixed Quarry Stone Crusher Plants
Based on mobility, a quarry stone crusher plant can be classified into fixed crushing plants and mobile crushing plants. This classification is an important consideration when planning a quarry project, as it directly affects installation cost, prodution flexibility, and operation efficiency.
Fixed Quarry Stone Crusher Plant
A fixed quarry stone crusher plants are installed at permanent sites and designed for long-term. high-capacity production. They are commonly selected by quarry operators who prioritize stable output, lower operating costs per ton, and long service life over short-term flexibility.
Mobile Quarry Stone Crusher Plant
Mobile quarry stone crusher plants are mounted on wheels or crawler tracks, allowing fast installation and easy relocation. They are ideal for projects with limited space or short production cycles.
Combined and Integrated Quarry Crusher Configurations
Combined quarry crusher plants integrate multiple crushing and screening units into a compact structure. They feature smaller footprints, faster setup, and easier transportation.
They are widely used in small to medium quarry operations or as flexible solutions alongside larger fixed crushing plants.
Quarry Stone Crusher Plant Working Process
The working process of a quarry stone crusher plant follows a systematic flow from raw stone feeding to finished aggregate output. A well-designed process ensures stable production and consistent product quality.
Primary Crushing Stage
Large quarry stones are first reduced in size by a jaw crusher, preparing the material for secondary processing.
Secondary and Tertiary Crushing Stages
Cone crushers or impact crushers further reduce stone size. VSI crushers may be added to improve aggregate shape or prduce fine materials.
Screening and Materials Circulation
Vibrating screen classify materilas by size. Oversized materials are returned for further crushing, forming a closed-loop system.
Finished Aggregate Output
Qualified aggregates are conveyed to stockpiles for use in concrete, asphalt, or infrastructure projects.
How to Choose the Right Quarry Stone Crusher
Choosing the right quarry stone crusher requires evaluating the entire crushing solution rather than a single machine. A well-matched solution helps avoid oversizing, unnecessary investment, and lont-term operating inefficiencies.
Stone Type and Hardness
The first factor to consider is the type and hardness of the stone. Different materials require different crushing principles.
- Hard and abrasive stones, such as granite and basalt are best processed with jaw crushers and cone crushers.
- Medium and soft stones like limestone are suitable for impact crushers, which offer better particle shape.
Understanding stone characteristics helps prevent excessive wear and reduces maintenance costs.
Required Output Size and Aggregate Quality
The required finished aggregate size directly affects crusher selection and plant configuration. Projects that demand well-shaped aggregates or fine materials may require additional crushing stages or VSI crushers for shapnig.
Proper screening and closed-circuit systems also play an important role in contorlling final product quality.
Production Capacity Requirements
Production capacity is ususally measurement tons per hour (TPH). A small quarry may require 50-100TPH, while medium and large quarry operations often need 200TPH or more.
Selecting equipment that matches the target capacity ensures stable operation without overloading or energy waste.
Fixed or Mobile Crushing Plant
Another key decision is whether to use a fixed or mobile quarry stone crusher plant. Fixed plants are ideal for long-term, high-capacity quarry operations, while mobile crushing plants offer flexibility, fast installation, and lower initial civil costs.
The choice depends on project duration, site conditions, and mobility requirements.
Environmental and Operating Conditions
Modern quarry projects must also consider environmental regulations, such as dust control and noise reduction. Equipment layout, dust suppression systems, and enclosure design all influence compliance and working safety.
By carefully evaluating these factors, quarry operators can select a quarry stone crushe solution that delivers reliable performance and long-term value.
Quarry Stone Crusher Plant Applications
A quarry stone crusher plant is widely used in various construction and infrastruction projects. Their flexibility makes them suitable for both commercial aggregate suppliers and contractors operating their own quarry sites.
Aggregates for Concrete Production
Crushed stone produced by quarry stone crusher plants is a primary material for concrete batching plants. Well-graded aggregates with consistent particle size help improve concrete strength, durability, and workability.
Aggregates for Asphalt Mixing Plants
Quarry stone crushers also play a key role in supplying aggregates for asphalt mixing plants. Asphalt production requires aggregates with good shape, high strenghth, and proper gradation.
By using impact crushers or VSI crushers in the final crushing stage, quarry stone crusher plants can produce cubic-shaped aggregates that enhance asphalt quality and long-term performance.
Road Construction and Infrastructure Projects
In road construction, railways, bridges, and other infrastructure projects, quarry stone crusher plants provide essential materials such as base course aggregates, sub-base materials, and structural stone.
The ability to continuously supply large volumes of aggregates makes quarry stone crusher plants an indispensable part of modern infrastructure development.
Advantages of Well-designed Quarry Crushing Plant
A well-designed quarry stone crusher plant delivers more than basic stone crushing. Through proper equiment selection and optimized layout, it provides long-term operational and economic benefits for quarry operators.
Stable Output and Hight Efficiency
An optimized quarry crushing plant ensures continuous materials flow and balanced crushing stages. This results in stable production capacity, reduced downtime, and higher overal efficiency, even under heavy-duty operating conditions.
Lower Operating and Maintenance Costs
By matching the crusher type to stone characteristics and production requirements, equipment wear is significantly reduced. This helps lower maintenance frequency, extend service life, and minimize operating costs per ton of aggregates.
Better Aggregate Shape and Quality
Proper crusher configuration, especially in secondary and tertiary stages, improves aggregate shape and size and size consistency. Well-shaped aggregates enhance the performance of concrete and asphalt, increasing the overall value of the final product.
Flexible Configuration and Scalability
A quarry stone crusher plant can be designed as a fixed or mobile system and expanded as production demand grows. This flexibility allows quarry operators to adapt to changing market requirements without major redesigns.
Why Choose LUTON Quarry Stone Crusher Solutions
With years of experience in stone crushing equipment manufacturing, LUTON provides reliable quarry stone crusher solutions tailored to different project requirements. Our goal is to help customers reduce project risk and achieve predicatable returns on investment.
Proven Manufacturing Experience
We design and manufacture quarry stone crushers based on practical quarry operating conditions. From material seletion to structural design, every machine is built to ensure durability, stable performance, and long service life in demanding environments.
Complete Crushing Plant Solutions
Our quarry stone crusher solutions cover the entire production process, including primary, secondary, and tertiary crushing, as well as screening and conveying systems. Each plant layout is customized according to stone type, capacity requirements, and site conditions.
Global Delivery and Installation Support
We support quarry projects worldwide with reliable logistics, on-site installation guidance, and commissioning services. Our experienced technical team helps customers bring their quarry stone crusher plants into operation quickly and smoothly.
After-sales Services and Spare Parts Supply
Long-term performance depends on timely service and quality spare parts. We provide responsive after-sales support, technical assistance, and a stable supply of wear parts to ensure continuous and efficient plant operation.
FAQs of Quarry Stone Crushers
What is the typical service life of a quarry stone crusher?
The service life of a quarry stone crusher depends on stone hardness, operating conditions, and maintenance practices. With proper operation and regular maintenance, core crushing equipment can operate reliably for many years in quarry applications.
How much space is required for a quarry stone crusher plant?
Space requirements vary depending on plant capacity, configuration, and whether the system is fixed or mobile. Compact or combined quarry stone crushr plants require less installation space, while larege fixed plants need more room for materilas flow and stockpiles.
Can a quarry stone crusher plant be expanded in the future?
Yes. Most quarry stone crusher plants are designed with scalability in mind. Additional crushers, screens, or conveyors can be added later to increase capacity or adjust product specifications as market demand changes.
Is operator training required for quarry stone crusher plants?
Basic operator training is recommended to ensure safe operation and stable production. Proper training helps reduce equipment wear, prevent unnecessary downtime, and improve overall crushing efficiency.
How long does it take to install and commission a quarry stone crusher plant?
Installation time dependds on plant size and configuration. Mobile plants can be commissioned quickly, while fixed crushing plants require more time for foundation work, installation, and system testing.
