Kazakhstan is known for its harsh continental climate, with long winters and temperatures that can fall below -20℃ in many regions. These conditions make winter concrete production particularly challenging, especially for projects located in remote or infrastructure-limited areas.
One of the key challenges is foundation construction in frozen ground. Traditional concrete batching plants rely on heave civil foundations, which are difficult and time-consuming to build during winter. Frozen soil, short construction windows, and high labor costs often delay project schedules before concrete production can even begin.
At the same time, low ambient temperatures directly affect batching efficiency and concrete quality. Without proper insulation, aggregates and mixing systems are exposed to freezing conditions, leading to unstable operation and reduced productivity.
| Model | FHZS50 |
| Theo. Productivity | 50 m³/h |
| Mixing Feeding Volume | 1600L |
| Mixer and Motor Power | JS1000/18.5kW × 2 |
| Cycle Period | 60s |
| Weighing Accuracy | Aggregate: ±2%, Liquid: ±1% |
| Foundation Steel Frame | H Steel |
| Control Mode | Full Automatic Control |
| Power Supply | 220V/415V/440V, 50Hz, 3 Phase |
For this project in Kazakhstan, the customer was looking for a practical winter concrete solution that could operate reliably in cold climates without complex foundation construction works. The batching plant needed to be installed quickly, reduce civil construction dependency, and maintain stable concrete production throughout winter. These combined challenges made a free-foundation insulated concrete batching plant the most suitable solution.
Why Free-Foundation Design Is Ideal For Cold Regions
In cold winters of Kazakhstan, foundation work is often the main bottleneck for concrete batching plants. Frozen soil and limited working periods make traditional foundation construction slow, costly, and unpredictable.
A free-foundation plant can be installed directly on compacted ground, eliminating excavation, reinforcement, and curing time. This allows rapid assembly and commissioning, even in sub-zero temperatures, ensuring continuous concrete supply during winter.
From an engineering perspective, free-foundation systems also offer flexibility and reusability. Plants can be relocated or dismantled after project completion without costly foundation demolition, making them ideal for temporary or phased projects.
For this Kazakhstan project, the free-foundation design was a critical engineering choice, reducing site preparation time while guaranteeing stable winter operation.
Integrated Insulation Design for Free-Foundation Batching Plant
In a free-foundation concrete batching plant, there is no permanent foundation to stabilize the structure, so the insulation system becomes critical to maintain both operational efficiency and concrete quality in cold climates. For the Kazakhstan project, all key components – including aggregate storage, weighing units, mixers, and control cabins – were fully enclosed and thermally insulated.
High-performance insulation panels were applied to minimize heat loss, while modular enclosure designs protected sensitive mechanical parts and aggregates from wind, snow, and freezing temperatures. The integrated design ensures that even with no civil foundation, the plant remains stable and fully operational during continuous winter production.
Additionally, the system includes heating and temperature control for aggregates and mixing units, allowing the plant to maintain proper material temperatures and consistent concrete quality. By combining free-foundation flexibility with a purpose-built insulated system, contractors in Kazakhstan were able to deploy the plant quickly and operate it reliably throughout the harsh winter months.
On-site Installation & Winter Operation in Kazakhstan
Site Preparation and Installation Technology
Before installation, the site was carefully prepared to ensure stability for the free-foundation batching plant. The ground was compacted and leveled using vibratory rollers and plate compactors, achieving a uniform load-bearing surface capable of supporting the modular plant without settlement issues, even under frozen soil conditions.
To secure the plant without a permanent foundation, anchored base plates and adjustable support pads were installed at key points. These provided structural rigidity, vibration damping, and resistance to lateral forces, ensuring the plant remained stable during operation while allowing minor adjustments for leveling.
The modular assembly workflow was carefully planned. Aggregate bins and hoppers were installed first, followed by the weighing and mixing systems, and finally the control cabin. This sequence optimized material flow and operational accessibility. Thanks to pre-fabricated modules, the entire installation was completed within 10 days, despite sub-zero temperatures.
Insulation Layer and Temperature Control Technology Details
Winter performance relied heavily on the integrated insulation system. Critical components, including aggregate storage, mixers, and weighing units, were enclosed with high-performance thermal panels designed for extreme cold. The panels had low thermal conductivity, sufficient thickness, and moisture-resistant surfaces to prevent heat loss and condensation.
For continuous operation, heating elements and temperature sensors were installed inside the mixers and aggregate bins. These sensors fed data to an automatic control system that adjusted heating power in real-time, keeping materials at the optimal temperature. This combination of insulation and active temperature control ensures consistent concrete temperatures, even when ambient conditions dropped below -20℃.
Operation Verification in Winter
During winter operation, the plant maintained a daily output of 50-60m³ with stable mix temperatures throughout production cycle. Any minor temperature fluctuation were addressed through localized insulation adjustments and controlled heating, demonstrating the adaptability of the system.
The free-foundation design also proved structurally reliable under frost conditions. No settlement, vibration-related issues, or component misalignment occurred, validating the combined approach of anchored supports + insulated enclosures + active heating.
Project Summary
The Kazakhstan project illustrates how a free-foundation design paired with an integrated insulation system can reliably operate in extreme winter conditions. By combining structural flexibility, thermal protection, and precise temperature control, the plant achieved fast installation, stable operation, and high-quality concrete production without relying on conventional foundations.This integrated approach provides contractors with a practical, efficient, and winter-ready solution, demonstrating why free-foundation insulated batching plants are increasingly favored in cold-region construction projects.
Customer Feedback & Real Operating Results
The customer operating the free-foundation insulated batching plant in Kazakhstan confirmed that the system performed exceptionally well during winter conditions. Despite temperatures dropping below -20℃, the plant maintained continuous concrete production, with no interruptions due to freezing or equipment instability.
The output ranged between 50m³ and 60m³ per hour, while internal material temperatures remained stable thanks to the integrated insulation layer and active heating system. Real-time monitoring allowed for precise temperature adjustments, ensuring uniform concrete quality for all batches.
The customer specifically highlighted the rapid installation as a major advantage. With the free-foundation modular design, the plant was fully operational within 10 days, significantly reducing project startup time and labor costs compared to traditional foundation -based plants.
Additionally, the flexibility of the free-foundation structure allowed minor on-site adjustments without affecting production. The combination of anchored supports, modular assembly, insulated enclosures, and temperature control gave the contractor confidence in the system’s reliability for both temporary and long-term projects.
Overall, the customer confirmed that the plant met and exceeded expectations, delivering stable, high-quality concrete production under extreme winter conditions. This real-world validation demonstrates that free-foundation insulated batching plants are a practical, professional solution for cold-climate construction projects.

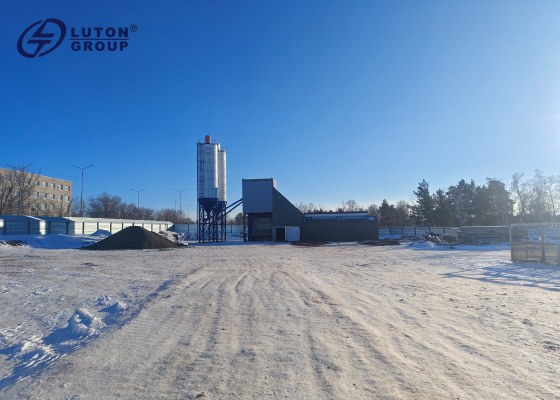

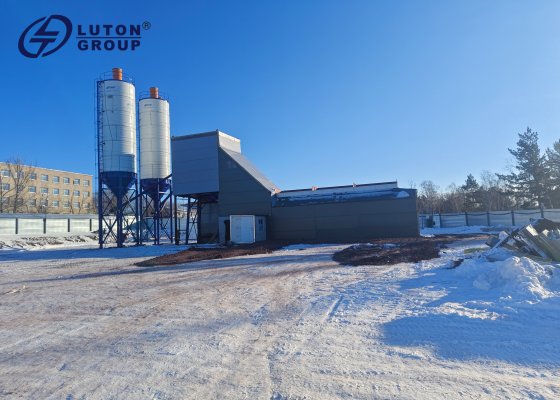

Free-Foundation Insolated Concrete Batching Plant in Kazakhstan in Operation
To further validate the engineering solutions described above, the Kazakhstan project is supported by on-site photos and working videos recorded during winter operation. These materials provide a direct view of how the free-foundation and insulation systems perform under real cold-climate conditions.
The visual documentation highlights several critical aspects:
- Free-foundation installation details, including compacted ground preparation, anchored supports, and modular layout.
- Fully enclosed and insulated aggregate bins and mixing units, operating in snowy and sub-zero environments
- Heating systems and control cabin operation, showing stable equipment performance during continuous production
- Concrete batching and discharge process, demonstrating consistent output and smooth workflow in winter conditions
These videos and photos serve as practical engineering proof, allowing contractors and project owners to clearly understand how the design works on site, not just in theory, but in daily winter operation.
